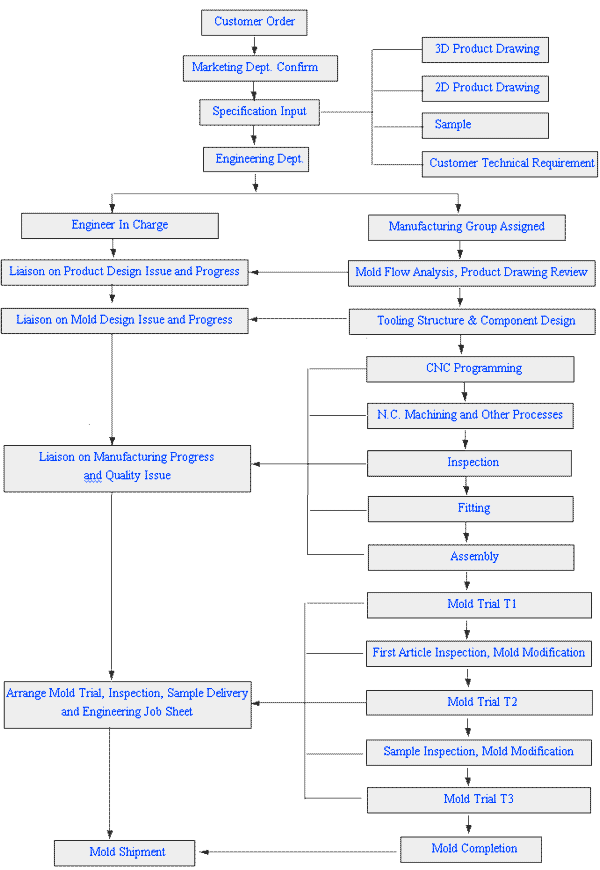

Work Flow
|
|
|
|
Project Engineering
|
|
|
 The project engineer act as customer's representative to follow up tooling schedule and timely report to the customer on quality and delivery issues. The project engineer also guarantees that customer's technical requirement are followed.
The project engineer is directly reported to the General Manager to guarantee their instruction are followed by the manufacturing group.
The project engineer will regularly update the customer on the tooling progress.
|
|
|
Mold Design, N.C. Programming, Moldflow Analysis(CAD/CAM/CAE System)
|
|
|
CAE
Using MOLDFLOW software to simulate the resin flow in cavity, it will offer to mold designer the best reference solution and greatly reduce the tooling development lead time.
|
|
|
|
|
|
|
Mold Design, N.C. Programming, Moldflow Analysis(CAD/CAM/CAE System)
|
|
|
CAD
BH Mold is using the Unigrahics software for product design and mold design. Unigrahics possesses the capability of direct part line processing from product 3D model. The assembly drawing is generated from defining parameters for standard components of mold base, insert parts, slides. The design is completed in a 3D environment and the drawings can be generated in 2D format.
|
|
|
|
|
|
Mold Design, N.C. Programming, Moldflow Analysis(CAD/CAM/CAE System)
|
|
|
CAM
The Unigrahics software is extended into the CAM process. Data consistency is guaranteed by using the data from the CAD file for the CAM job of NC programming.
|
|
|
|
|
